Water Process System


Ultra Filtration
UF system is for reducing the Oil content in water from 10 ppm to less than 5 ppm, TSS from 10 ppm to less than 3 ppm and turbidity to less than 1 NTU.

Ultrafiltration are designed for Dead end filtration for the produced water clarification.

Hollow-fibre ultra filtration membrane - remove suspended particulates, colloidal material, bacteria and high molecular weight greater than 0.1 micron in size.

Hydrostatic pressure forces a liquid against a porous surface.

Suspended solids and solutes of high molecular weight are retained, while water and low molecular weight solutes pass through the membrane.

Two cycle in UF operation,
(i) Filtration Cycle (Normal Operation), (ii) Cleaning cycle (Scouring by Air and Back wash)


UF Packages

Client: UEM India Pte Ltd, India
End User: Oil and Natural Gas Corporation Ltd, India
Field Name: Ahmedabad &Ankleshwar Assets, India
Location: Gujart, India

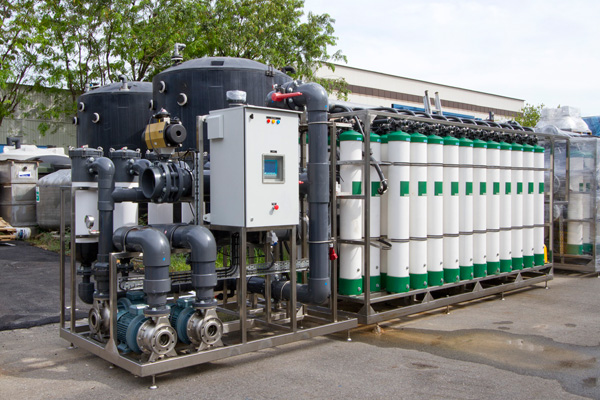

System Type: Ultrafiltration Skid
Capacity: 5000 M3/Day
Service Provided: Turnkey Project
Contract Award: Oct 2010
Completion: June 2012
Description of Work: Removal of Oil, Grease, TSS, TDS, Turbidity by Ultra Filter Membrane Mechanism from the Produced Water and helps to meet the water allowable parameters as per Gujarat Water Pollution Control Board Standards.
